High-Performance Window & Glazing Systems for Iraq
Engineered to withstand Baghdad's ambient temperatures exceeding 50°C and severe sandstorms, our NFRC-certified window systems combine high thermal resistance with superior acoustic isolation.

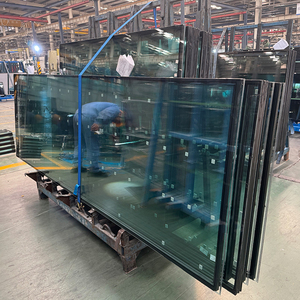

Wholesale Price Professional Workmanship Insulated Tempered Insulating Glass For Building Construction

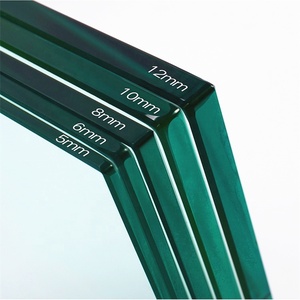

High-Temperature Resistant Eco-Friendly Insulating Laminated Glass Soundproofing UV Protection Custom Thickness

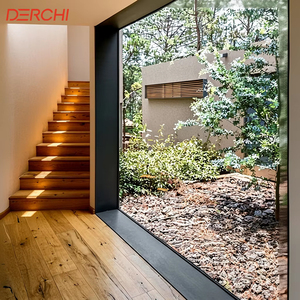

NFRC Certification Big View Extra Large Insulated Window House Glass Floor To Ceiling Custom Size Windows

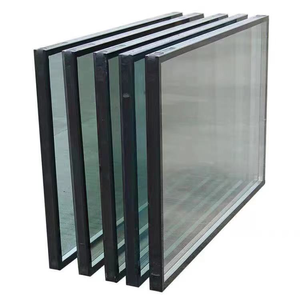

Custom Double-Layer Tempered Glass Solar Kitchen Acoustic Insulation Low-E Eco-Friendly Noise Reduction Vacuum Glass
Thermal Break Aluminum Alloy Bi-fold Tempered Glass Custom Modern Eight Panel Wide Span Low-E Coating Window System

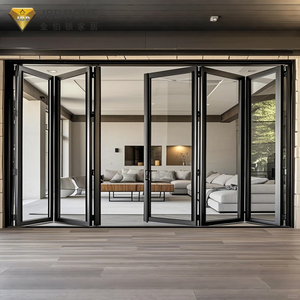

Heavy Duty Thermal Break Aluminum Glass Bi-Fold Exterior Villa Foldable Double Glazed Tempered Glass 5-Year Warranty

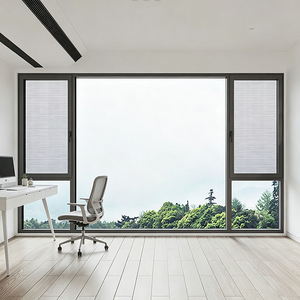

Triple Insulated Tempered Glass Casement Windows With Structural Aluminum Alloy Frame For Modern Heat Insulation

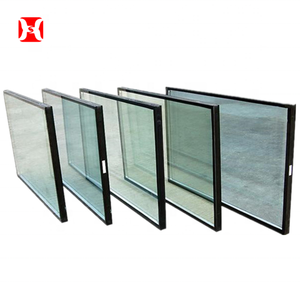

Wholesale Discount Hollow Insulated Double & Triple Glazed Window Units Certified Manufacturing
Engineering Window Frames for Iraq's Extreme Microclimates
Standard architectural fenestration manufactured for temperate zones frequently fails in the Middle East. Operating in Iraq requires advanced structural physics, solar control, and dust-tight seal engineering.
Mitigating Extreme Summer Thermal Radiation (>52°C Ambient)
During summer months in central and southern Iraq (Baghdad, Basra, Najaf), exterior aluminum window surface temperatures can spike past 75°C (167°F) under direct solar irradiance. Unbroken metallic frames act as thermal conductors, transferring heat straight into air-conditioned interior spaces and forcing HVAC systems to operate at maximum capacity.
Our specialized window frames for Iraq feature high-density PA66-GF25 polyamide thermal breaks (25% structural glass fiber reinforcement). This structural barrier physically separates exterior and interior aluminum extrusions, reducing thermal conductivity by over 800% compared to non-thermal aluminum profiles.
- Extreme Heat Stability: Zero profile warping or frame sagging at ambient temps exceeding 55°C.
- Solar Heat Gain Control: Integrated Low-E double and triple glazing with SHGC values as low as 0.20.
- Reduced HVAC Load: Lowers residential and commercial cooling energy consumption by up to 38%.
Sandstorm Ingress & Dust-Sealing Architecture
Seasonal Shamal winds carry ultra-fine desert silica particulates across Iraq. Traditional sliding windows with felt seals quickly become clogged, leading to severe air infiltration, mechanical binding, and interior dust accumulation.
We solve dust infiltration through an engineered multi-barrier sealing mechanism:
- Continuous EPDM Gasket System: Automotive-grade ethylene propylene diene monomer (EPDM) synthetic rubber seals that remain flexible under intense UV exposure.
- Pressure-Equalized Drainage Channels: Concealed weep hole baffles that allow condensation drainage while blocking reverse air/dust blowback during high wind events.
- Sigma-Welded Seamless Corners: Solid 6063-T6 miter joints welded continuously to eliminate micro-gaps common in mechanical screw-together frames.
Targeted Architectural Applications Across Iraqi Provinces
Different regions across Iraq present distinct structural, aesthetic, and environmental demands. Our factory custom-fabricates window systems to match exact regional engineering requirements.
Baghdad High-Rise Commercial Towers
Commercial districts in Al-Karrada and Al-Mansour require curtain walls and heavy-duty window frames capable of handling immense structural wind loads and acoustic dampening against city traffic noise.
Recommended Spec: Structural 6063-T6 extrusions with 12mm+ laminated sound-insulating Low-E glass (STC rating > 42 dB).
Erbil Luxury Villas & Residential Estates
Modern residential architecture across the Kurdistan region emphasizes grand sightlines, expansive floor-to-ceiling glass, and seamless transitions between interior living rooms and outdoor courtyards.
Recommended Spec: Ultra-slim thermally broken bi-fold and lift-and-slide doors with hidden frames and solar control glass.
Basra Industrial & Coastal Zones
Near the Arabian Gulf shipping corridors and Umm Qasr port, elevated humidity combined with coastal air salt concentration accelerates metallic oxidation and surface pitting.
Recommended Spec: Marine-grade 25-micron anodic oxidation or 3-coat PVDF fluorocarbon coatings over heavy aluminum profiles.
Najaf & Karbala Institutional Projects
High-foot-traffic public developments, hotels, and educational facilities require durable, impact-resistant window framing built for continuous physical operation and thermal efficiency.
Recommended Spec: Heavy-duty double casement aluminum windows equipped with stainless steel friction hinges and multipoint locking hardware.
Sulaymaniyah Hillside & Mountain Resorts
Severe winter cold combined with intense high-altitude solar exposure demands multi-seasonal thermal performance to maintain stable interior climate zones.
Recommended Spec: Triple-pane vacuum insulated glass integrated into 75mm deep multi-chambered thermal break aluminum frames.
Why Top Iraqi Developers Partner Direct with Our Factory
With over six decades of precision aluminum fabrication, we bridge the gap between architectural vision and structural reality, providing full OEM/ODM customization for Middle Eastern projects.
1. Sigma-Welded Corner Construction vs. Mechanical Crimping
Most commercial window suppliers utilize cheap mechanical screws and corner brackets to assemble window frames. Under Iraq's severe daily thermal expansion and contraction cycles, mechanical joints expand, loosen, break sealant bonds, and create permanent dust/water leak paths.
Our shop employs Sigma TIG/MIG full-penetration welding at every joint. The aluminum extrusion members are fused together at a molecular level into a single continuous monolithic metal structure. Welded corners will never loosen, rack out of square, or open water channels under structural wind load.
2. Certified 6063-T6 Extrusion Billets
We use exclusively prime, non-recycled 6063-T6 structural aluminum alloy. T6 heat treatment yields a minimum tensile strength of 205 MPa (30,000 psi) and yield strength of 170 MPa (25,000 psi). This strength-to-weight ratio allows us to manufacture narrow sightline window frames capable of supporting heavy multi-pane glass units exceeding 400 kg without frame deflection.
Technical Comparison: Factory Specifications vs. Standard Iraqi Market Offerings
| Engineering Parameter | Our Factory Standard | Standard Market Alternatives | Impact on Project in Iraq |
|---|---|---|---|
| Aluminum Alloy Grade | 6063-T6 Architectural Grade Billet | Recycled 6063-T5 or Mixed Scrap Alloys | Prevents frame sagging, wall cracking, and deformation under wind pressure. |
| Corner Joinery Method | Continuous Sigma Fusion Welded | Mechanically Screwed & Crimped | Eliminates dust infiltration and frame corner joint separation over decades. |
| Thermal Barrier Material | PA66-GF25 Polyamide Struts (25mm+) | PVC Strips or Non-Thermal Solid Metal | Blocks heat conduction, maintaining interior room coolness and saving electricity. |
| Surface Coating Spec | PVDF 3-Coat / QUALICOAT Class 2 | Single Powder Coating (Non-UV Rated) | Guarantees 20+ years of color retention against extreme Iraqi solar radiation. |
| Weatherstripping Seals | Triple EPDM Continuous Gaskets | Low-grade PVC or Synthetic Felt | Stops fine desert sand and silica dust from invading air-conditioned interiors. |
Fenestration Development & Architectural Trends in Iraq
Analyzing key shift vectors in Iraqi residential, commercial, and government reconstruction projects.
Transition to Energy Efficiency Codes
With municipal electrical grids under heavy load during summer heatwaves, the Iraqi Ministry of Construction and housing developers are mandating thermal break windows with Low-E glass specs to lower transformer overload and operational HVAC expenditure.
Demand for Urban Sound Isolation
Rapid urbanization in central Baghdad, Erbil, and Basra has driven demand for high STC (Sound Transmission Class) acoustic windows. Double and triple IGUs integrated with PVB laminated glass effectively deaden heavy urban and traffic noise pollution.
Rise of Modern Minimalist Profiles
Architects working on modern Iraqi villa projects are abandoning bulky traditional PVC profiles in favor of ultra-slim aluminum window frames that maximize daylighting without compromising structural load capability.
Procurement & Technical FAQ for Iraqi Importers
Everything you need to know about factory ordering, customs documentation, regional shipping routes, and performance customization.
We handle sea freight shipments directly to Umm Qasr Port (South Iraq) or overland transit via Turkey through the Ibrahim Khalil border crossing for northern provinces (Erbil, Sulaymaniyah, Dohuk). We supply complete export documentation including Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin (CO), and required compliance certificates for COSQC (Central Organization for Standardization and Quality Control) inspection clearance.
Non-thermally broken aluminum has extremely high thermal conductivity. Under Iraq’s 50°C+ summer heat, an uninsulated frame conducts heat directly into the building, causing hot interior frame surfaces, condensation issues in winter, and massive electrical bills from continuous AC usage. Thermally broken profiles introduce a PA66 glass-fiber polyamide barrier that isolates the exterior metal from the interior metal, ensuring high thermal performance.
Yes. Every single window unit is custom fabricated to your exact opening dimensions. Simply send your CAD elevations, window schedules, or shop drawings. Our engineering team prepares detailed submittal CAD drawings showing structural profile sections, glass bite, hardware placement, and net dimensions for sign-off prior to extrusion cutting.
Our window systems utilize multi-stage continuous EPDM rubber weatherstripping gaskets paired with sigma-welded solid frame corners. Unlike sliding windows that rely on felt strips, our casement, tilt-and-turn, and heavy-duty lift-sliding systems press tightly against double-rebated seals under lock compression, completely sealing out airborne silica dust and fine sand particulates.
We recommend PVDF (Polyvinylidene Fluoride) 3-coat fluorocarbon coatings or QUALICOAT Class 2 high-durability architectural powder coatings. These specialized surface finishes resist chalking, fading, and gloss loss under extreme UV irradiance and high thermal cycles, maintaining pristine color fidelity for over 20 to 25 years.
Standard production time is 25 to 35 business days following final CAD submittal approval. Products are securely packed in heavy-duty export wooden crates with protective foam corner guards and moisture barrier wrapping to guarantee damage-free arrival at your job site in Baghdad, Erbil, or Basra.
Ready to Equip Your Project in Iraq with High-Performance Fenestration?
Contact our structural engineering team today for factory-direct wholesale pricing, CAD shop drawing reviews, and complete container shipping logistics assistance.
